Manual Stacker Product Details

1. Introduction

A manual stacker is a versatile and essential piece of equipment in various industries, especially in warehouses, distribution centers, and small - scale manufacturing facilities. It is designed to lift, move, and stack pallets and heavy loads with relative ease, relying on manual operation rather than complex electrical or hydraulic power systems.

2. Key Features

2.1 Simple Design

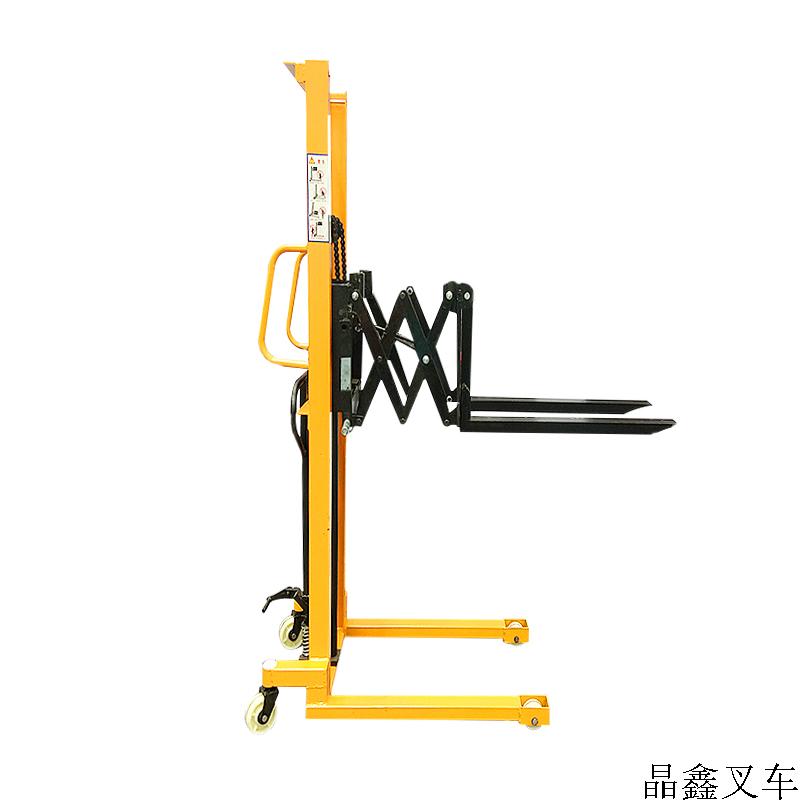

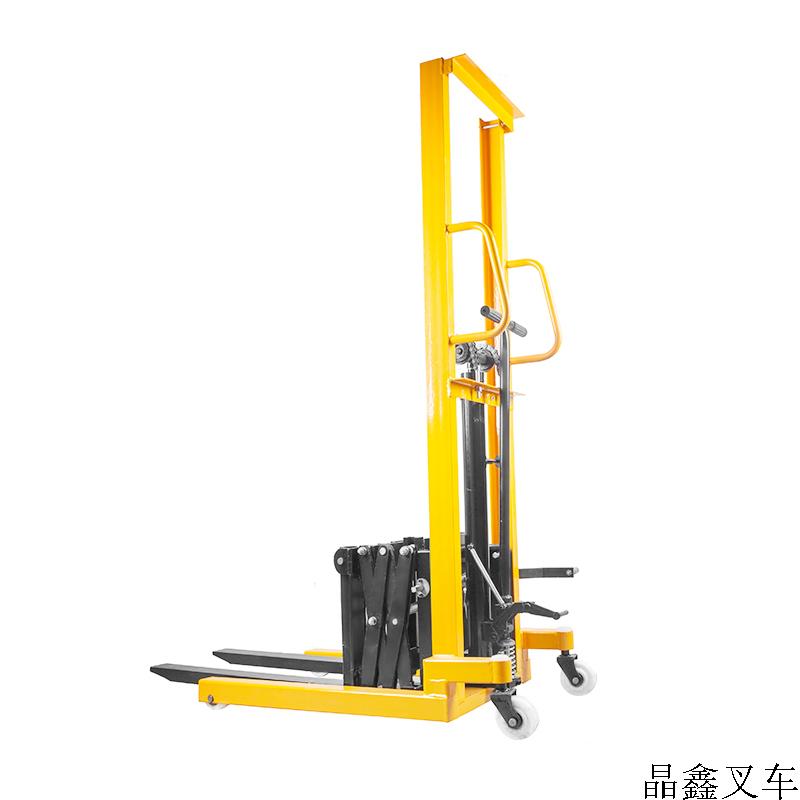

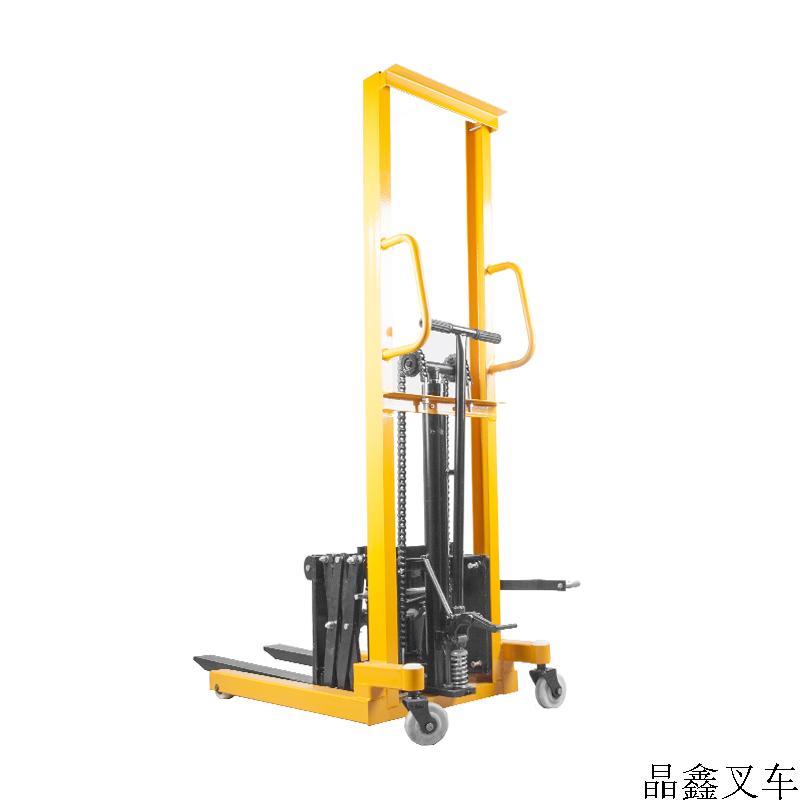

The manual stacker typically has a straightforward design. It consists of a base with wheels for mobility, a mast for lifting, a fork for supporting the load, and a manual pump mechanism. This simplicity makes it easy to understand and operate, even for novice users.

2.2 Portability

Due to its relatively lightweight and compact structure, the manual stacker is highly portable. It can be easily maneuvered around tight spaces, such as narrow aisles in a warehouse. The wheels on the base allow for smooth movement in different directions, enabling quick repositioning of the stacker.

2.3 Cost - Effective

Compared to electric or automated stackers, manual stackers are much more cost - effective. They have lower upfront purchase costs and require minimal maintenance. There is no need for expensive batteries, motors, or complex control systems, making them an ideal choice for businesses on a budget.

2.4 Safety Features

Most manual stackers are equipped with safety features. For example, they often have a mechanical locking mechanism to prevent the forks from accidentally lowering. This ensures the safety of the operator and the stability of the load during lifting and stacking operations.

load capacity	500kg
lift height	1600mm
warrany	1 year
use way	manual

3. Technical Specifications

3.1 Lifting Capacity

Manual stackers come in a range of lifting capacities, typically from 500 kg to 2000 kg. The choice of lifting capacity depends on the nature of the loads that need to be handled. For light - duty applications, a stacker with a lower capacity may be sufficient, while heavy - duty tasks require a higher - capacity model.

3.2 Lifting Height

The lifting height of a manual stacker can vary from around 1 meter to 3 meters or more. This allows for stacking pallets at different heights, accommodating the storage requirements of different facilities. Higher lifting heights are useful for maximizing vertical storage space.

3.3 Fork Dimensions

The fork dimensions, including length and width, are important factors. The length of the forks should be appropriate for the size of the pallets being used. Standard fork lengths range from 900 mm to 1200 mm, and the width can be adjusted to fit different pallet sizes.

3.4 Wheel Type and Size

The wheels of a manual stacker play a crucial role in its mobility. They are usually made of materials such as polyurethane or rubber. Polyurethane wheels offer good wear resistance and are suitable for indoor use, while rubber wheels provide better traction on uneven surfaces.

4. Applications

4.1 Warehousing

In warehouses, manual stackers are used for loading and unloading pallets from trucks, moving pallets within the storage area, and stacking them on shelves. They are particularly useful for handling small to medium - sized loads and for tasks that do not require high - speed or continuous operation.

4.2 Retail Stores

Retail stores often use manual stackers to restock inventory. They can be used to move boxes and pallets from the storage area to the sales floor, making it easier to keep the shelves stocked with products.

4.3 Small - Scale Manufacturing

In small - scale manufacturing facilities, manual stackers are used to move raw materials and finished products between different workstations. They help in organizing the production process and ensuring efficient material flow.

5. Maintenance and Care

5.1 Regular Inspections

Regular inspections of the manual stacker are essential to ensure its safe and efficient operation. Check for any signs of wear and tear on the wheels, forks, and the lifting mechanism. Inspect the hydraulic system (if applicable) for leaks and proper functioning.

5.2 Lubrication

Proper lubrication of moving parts, such as the joints and the pump mechanism, is necessary to reduce friction and prevent premature wear. Use the recommended lubricants as specified in the product manual.

5.3 Cleaning

Keep the manual stacker clean by removing any dirt, debris, or dust that may accumulate on it. This helps to maintain its appearance and prevent corrosion, especially if the stacker is used in a dirty or dusty environment.
