Pallet handling is a daily high-frequency operation in warehouse logistics, factory workshops, supermarkets and retail scenarios. Traditional manual pallet jacks are time-consuming and labor-intensive; long-hour operation easily causes worker fatigue and reduces work efficiency. Meanwhile, large forklifts are inflexible and hard to maneuver in narrow aisles and small warehouses.

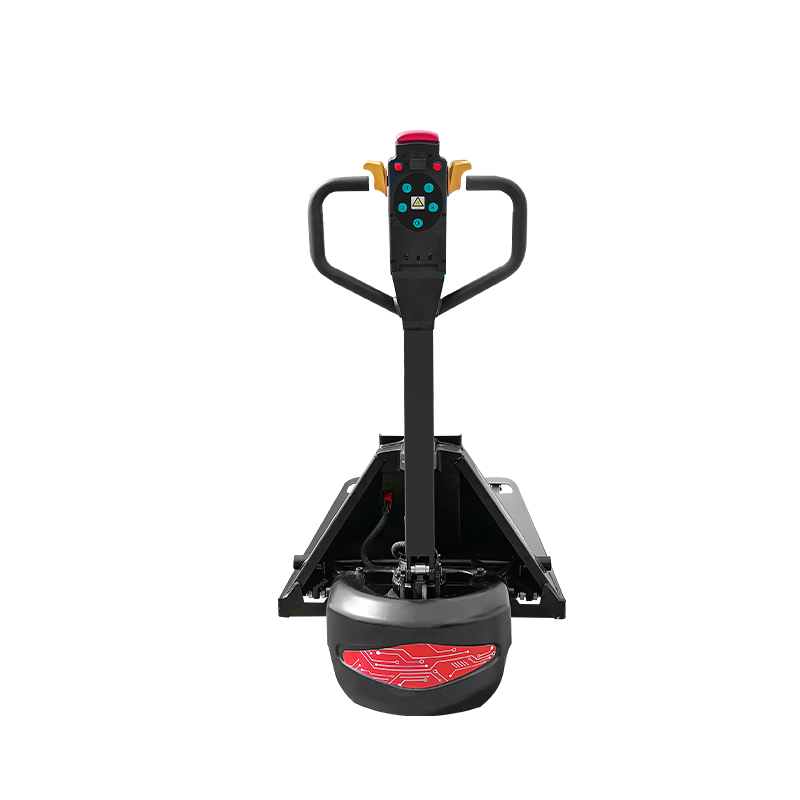

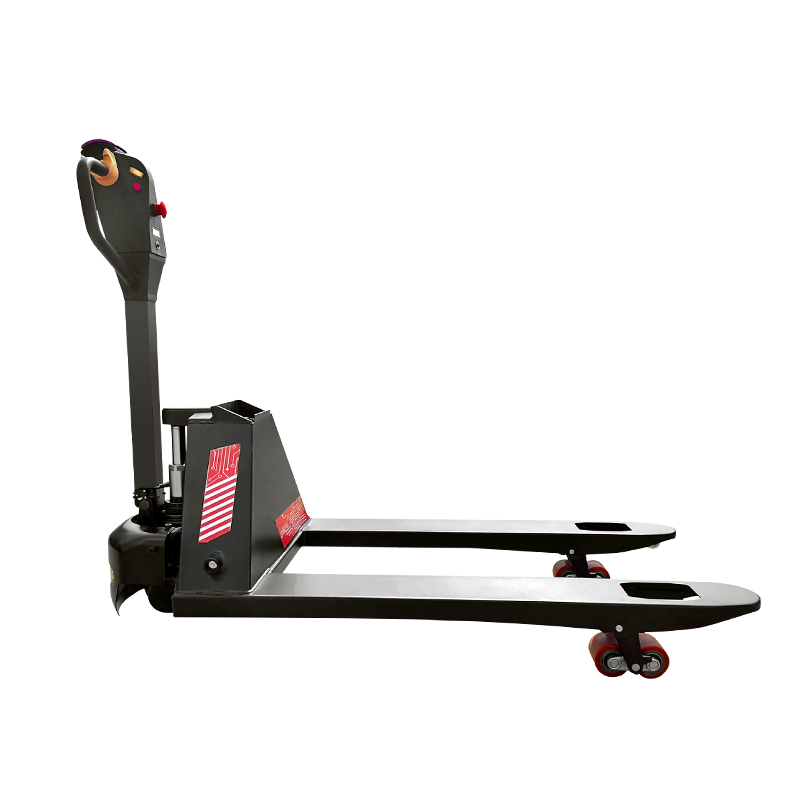

Launched by Jingxin Forklift, the Xiaojingling CBD20 Full Electric Pallet Jack features upgraded lithium battery, lightweight flexibility and sturdy durability. It perfectly solves pallet handling pain points for small and medium-sized scenarios, serving as an ideal helper for efficient warehouse operations.
Four Core Advantages Redefine Efficient Handling Experience
1. Upgraded Lithium Battery, No Range Anxiety
The Xiaojingling CBD20 is equipped with a detachable lithium battery, standard with 48V10AH capacity. It supports 6-second quick battery replacement to realize 24-hour non-stop operation without charging waiting time. A 48V14AH high-capacity battery is optional to meet high-frequency and long-distance handling demands.
Compared with traditional lead-acid batteries, lithium batteries feature longer cycle life and lower maintenance cost, with no liquid leakage or bulky weight issues. It adapts to low-temperature special warehouse environments, delivering stable power output in both cold chain warehouses and regular storage rooms.
2. Integrally Forged Forks, Heavy-duty & Durable
As the core load-bearing component of the pallet jack, fork quality directly determines service life and operational safety. The CBD20 adopts integrally forged forks made of high-strength material, which are deformation and fracture resistant, with a rated load capacity of 2000kg and stable performance for long-term use.
Multiple specifications are optional: fork length 1150mm/1200mm, width 550mm/685mm, compatible with most standard pallets to meet diverse user needs.
3. Ergonomic Design, Sensitive & Effortless Operation
Fitted with an ergonomic control handle, it supports one-key operation for forward, reverse and lifting functions. New operators can get started quickly with no complicated training required.
Equipped with a sine wave vector controller, it runs smoothly without jitter and delivers precise control. It can maneuver easily in narrow spaces and reduce collision risks. The handle fits human gripping habits effectively, relieving fatigue during long-hour operation and greatly improving working comfort.
4. Multiple Safety Protections, Full-operation Safety Guaranteed
Safety is the top priority of warehouse operations. The CBD20 adopts a dual braking system of electromagnetic brake + magnetic brake, achieving instant stop once parked with no slipping even on ramps to avoid accidents effectively.
With low-center-of-gravity design and PU non-marking wheels, it ensures stable operation and prevents floor scratches, friendly to tile, epoxy flooring and other ground surfaces. It achieves a maximum climbing gradient of 6° (full load) / 8° (no load), easily coping with slight warehouse ramps and expanding application scenarios.
Multi-scenario Adaptation, Unlock More Possibilities for Warehouse Handling
E-commerce Warehousing / Express Distribution Centers: High-frequency short-distance handling of palletized small goods; electric design greatly boosts efficiency and reduces labor burden.
Supermarket / Convenience Store Storage: Goods transfer in receiving areas and warehouses; flexible passage in narrow aisles with minimal space occupation.
Factory Workshop / Light Production Lines: Material turnover between workstations; flexibly shuttles across production lines to support efficient production flow.
Cold Chain / Pharmaceutical Warehousing: Lithium battery adapts to low-temperature environments with no pollution risks of lead-acid batteries, meeting special storage requirements.
Small Warehouses / Mezzanine Racks: Lightweight design allows easy passage in elevators and narrow aisles, realizing hassle-free goods transfer between floors.
