Traditional aerial work equipment cannot enter or turn freely in narrow workshop aisles, warehouse shelf gaps, and shopping mall corridor corners. Scaffolding takes time and effort to assemble and dismantle, and also disrupts business operations.

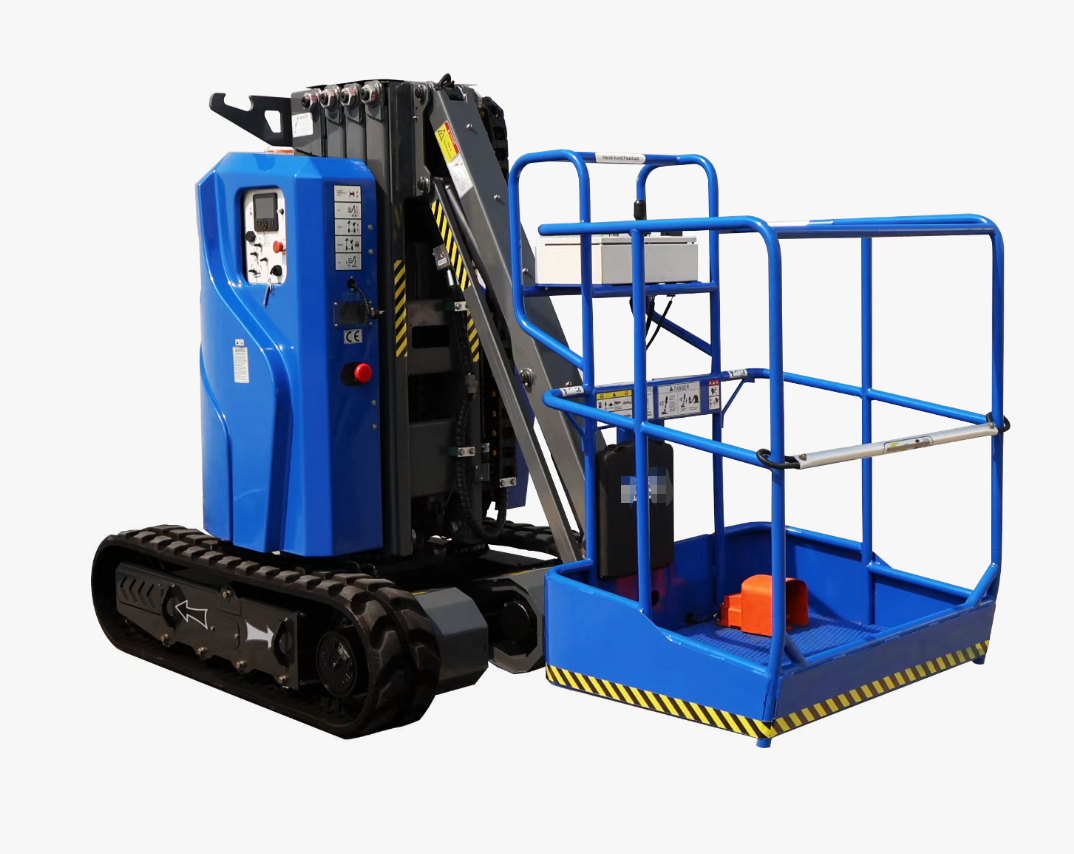

Ultra-Narrow Body, Flexible Movement Without Obstacles

• Ultra-compact dimension: The overall machine width is only 1.0m, easily passing through 1-meter-level passages. It moves freely in narrow spaces such as warehouses, workshops and hotel corridors without extra clearance of the working path.

• Indoor-friendly operation: Equipped with non-marking tires, it causes no damage to the ground during operation. It can be safely used in indoor scenarios including shopping malls, office buildings and factories without floor scratch concerns.

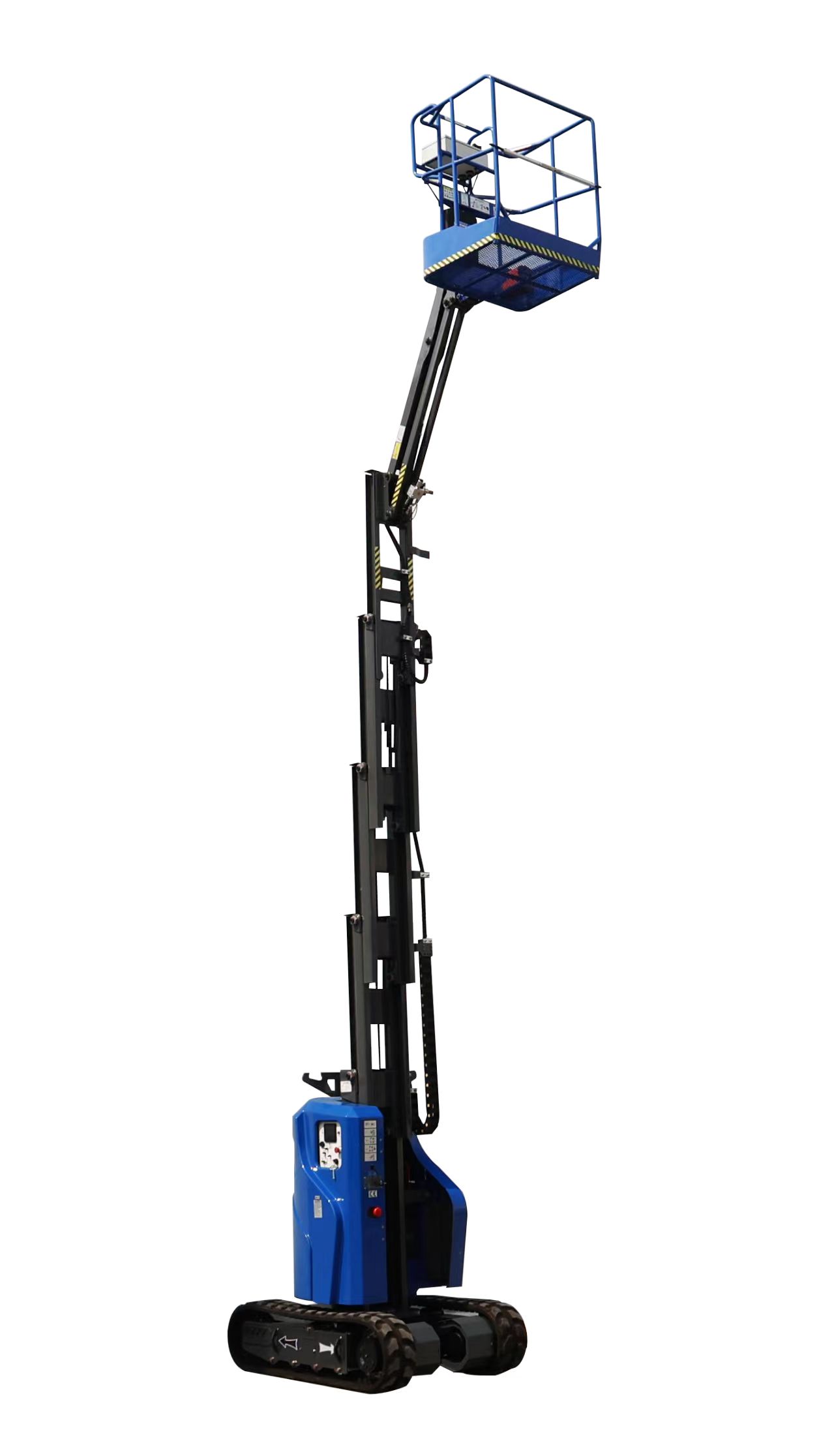

• 345° full slewing design: The platform supports 345° turntable rotation with a 130° jib moving angle. There is no need to move the machine frequently to cover multi-angle working points, reaching even the most awkward corners accurately.

• Minimum turning radius: Inner turning radius 0.23m, outer turning radius 1.65m. It realizes easy in-situ steering and adapts to the operation route planning of compact sites.

Multi-scenario Adaptation, Unlocking New Possibilities for Aerial Work

• Industrial Manufacturing: Equipment maintenance and pipeline installation in automobile workshops and machinery factories. It operates smoothly in narrow aisles without interrupting normal production line operation.

• Warehousing & Logistics: Inventory checking and maintenance of high-level warehouse shelves. No scaffolding required; a single operator can finish work quickly without occupying warehouse passages.

• Commercial Public Spaces: Light maintenance, ceiling upkeep and glass cleaning in shopping malls, hotels and office buildings. Non-marking tires protect the ground, and operation will not affect daily business.

• Electric Power & Municipal Engineering: Substation equipment maintenance, street lamp overhaul and elevated pipeline installation. The compact body adapts to narrow equipment rooms and corner operation of municipal roads.

Jingxin Premium Quality, Reflected in Every Detail

• Durable power system: Adopts 24V/0.9kW drive motor + 24V/3kW lifting motor, matched with 24V/240Ah large-capacity battery for long endurance to meet all-day operation demands. The AC drive system is maintenance-free, reducing long-term operating costs.

• Lightweight and stable body: The machine weighs only 2950kg, balancing lightweight design and structural stability. No need to worry about floor load-bearing even when working on indoor building floors.

• Humanized design: The control panel is reasonably laid out with clearly arranged function buttons, easy for novice operators to master quickly. Low-noise operation design brings no noise pollution during indoor work.
