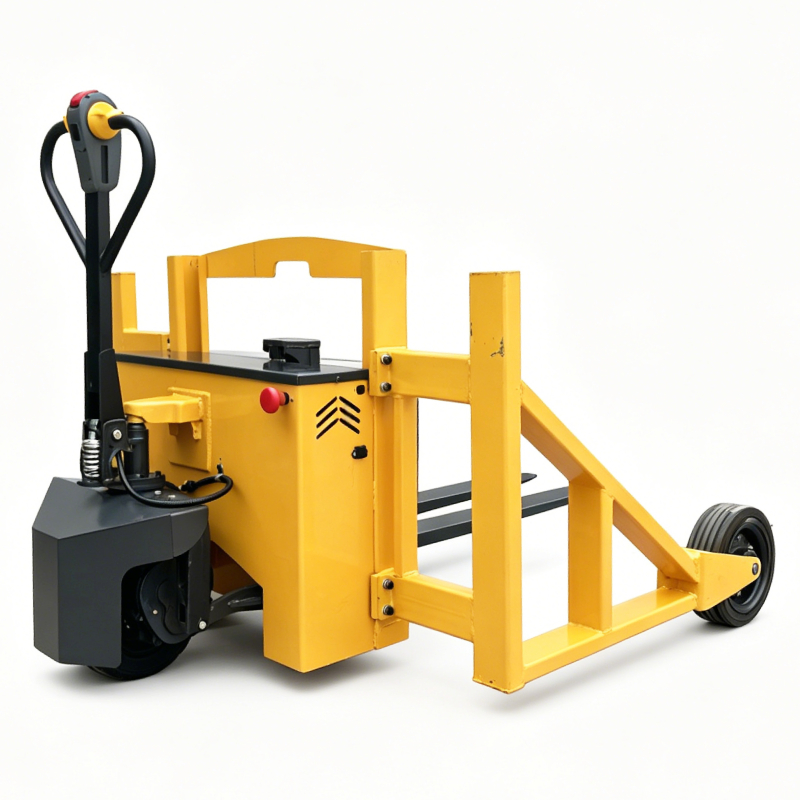

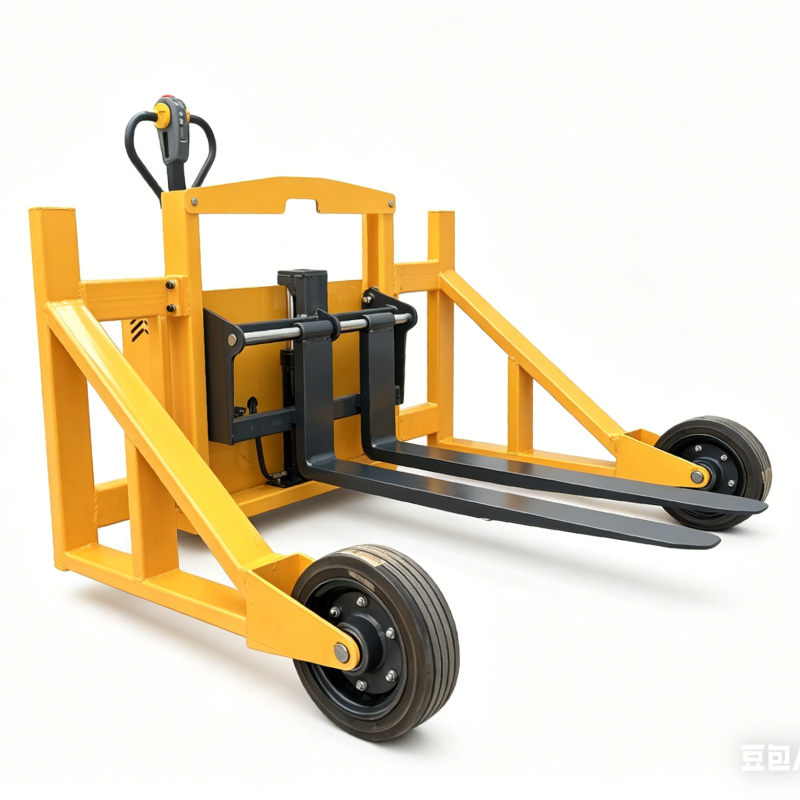

Jingxin Electric All-Terrain Pallet Truck: The Ultimate Heavy-Duty Hauler for Rough Terrains

In complex environments such as outdoor construction sites and stone processing

plants, traditional material handling equipment often falls short due to its fragility: slipping on muddy surfaces, struggling with uneven terrain, and failing to bear heavy construction materials. The Jingxin Electric All-Terrain Pallet Truck is redefining handling efficiency in demanding conditions with its "all-terrain performance and user-centric design," making it an indispensable asset for construction sites, mines, and building material plants.

I. Off-Road DNA: Built for Rough Roads, Zero Obstacles

As a piece of equipment specifically engineered for rugged outdoor sites, its "off-road capabilities" are hidden in the details:

Large Tires + Strong Power: Equipped with heavy-duty solid rubber tires on both the front and rear, it offers maximum grip and wear resistance, easily navigating through mud and gravel. Paired with a 1.0KW drive motor, it can climb a 5% gradient when fully loaded (8% when empty), making steep slopes and potholes effortless to tackle.

All-Terrain Adaptability: With a lowered fork height of just 50mm, it effortlessly slides under low-profile pallets. It features a lifting height of 250mm and a maximum lift stroke of 200mm to accommodate various loading and unloading heights. The adjustable inner width between the support legs (750 - 1250mm) fits different wooden crates and pallets. The forged forks are universally compatible, providing ultimate flexibility for material handling.

II. Hardcore Performance: 2-Ton Capacity, Unbreakable Endurance

The core of a handling vehicle lies in its "load-bearing capacity and durability," and Jingxin speaks through its specs:

Load-Bearing Champion: With a rated load capacity of 2000kg, it easily handles heavy building materials like concrete blocks and marble. One truck does the work of multiple standard pallet trucks.

Long-Lasting Endurance: Powered by high-quality domestic batteries (48V/20-32Ah) and a premium pump station, it delivers strong power and extended battery life, ensuring reliable performance during long shifts. The 0.8KW lifting motor guarantees smooth lifting and precise control even under heavy loads.

Efficient Transport: It reaches a top speed of 4km/h when fully loaded and 5km/h when empty, accelerating short-distance transport. Despite its compact dimensions of 1700×1550×1130mm, it handles heavy loads with ease and maneuvers smoothly through narrow spaces.

III. User-Centric Design: Space-Saving, Easy to Operate, and Hassle-Free

Beyond its "hardcore strength," its thoughtful design addresses real-world site pain points:

Space Master: The support legs are detachable, significantly reducing transportation and storage space when packed in a wooden crate, thereby lowering logistics costs.

Zero Learning Curve: The handle-control design allows operators to master it after minimal training. The 1070mm fork length is compatible with standard pallet sizes, doubling loading and unloading efficiency.

Reliable Core Components: Key components (batteries and pump stations) utilize premium domestic solutions, ensuring fast after-sales support and low maintenance costs. This guarantees the equipment is "built to last and cost-effective."

From muddy construction sites to stone processing plants, and from building material transport to mining operations, the Jingxin Electric All-Terrain Pallet Truck solves complex handling challenges with its "off-road passability, heavy-load stability, and user-centric design." It is more than just a tool; it is an "accelerator" for engineering efficiency. Choose the right equipment, and make every handling task "stable, precise, and fast!"
